Types of Metal Testing

 There are several types of metal testing used to evaluate the properties and quality of metals. Here are some common types of metal testing:

1. Tensile Testing: Measures the strength and ductility of a metal by subjecting it to a controlled tensile force until it fractures. It provides information on yield strength, ultimate tensile strength, elongation, and other mechanical properties.

2. Hardness Testing: Determines the resistance of a metal to indentation or scratching. Various hardness tests, such as the Brinell, Rockwell, and Vickers tests, are used to assess the material's hardness.

3. Impact Testing: Evaluates a metal's ability to withstand sudden loading or impact. The Charpy and Izod tests measure the energy absorbed by a metal specimen when struck by a pendulum or falling weight.

4. Fatigue Testing: Assesses a metal's resistance to repeated cyclic loading. It helps determine the endurance limit, fatigue strength, and fatigue life of a material.

5. Non-Destructive Testing (NDT): Techniques such as ultrasonic testing, magnetic particle testing, liquid penetrant testing, and radiographic testing are used to detect internal or surface defects in metals without causing damage to the material.

6. Microstructure Analysis: Involves examining the metal's microstructure using microscopy and other techniques to assess grain size, phase composition, inclusion content, and the presence of defects or anomalies.

7. Chemical Analysis: Determines the chemical composition of a metal, including the percentage of various elements present. Techniques such as optical emission spectroscopy (OES) and X-ray fluorescence (XRF) are commonly used.

8. Corrosion Testing: Evaluates a metal's resistance to corrosion under specific environmental conditions. Various tests, such as salt spray testing, electrochemical corrosion testing, and exposure to corrosive environments, are performed.

9. Weldability Testing: Assesses the quality and performance of welds in metals, including testing for defects, such as porosity, cracks, and incomplete fusion.

10. Metallographic Examination: Involves preparing metal samples for microscopic analysis to study the metal's microstructure, grain boundaries, phase distribution, and other structural features.

These are just a few examples of the types of metal testing methods used. The selection of specific tests depends on the desired information, the intended application of the metal, and the relevant industry standards and specifications.

Metallurgy Overview

 Metallurgy is a branch of science and engineering that deals with the study of metals and their properties, as well as the processes involved in their extraction, purification, alloying, and shaping. It encompasses the understanding and manipulation of metallic materials to meet specific performance requirements for various applications.

Overview of Metallurgy:

1. Extraction of Metals: Metallurgy involves the extraction of metals from their ores through processes like mining, crushing, grinding, and smelting. These processes aim to obtain the desired metal in a pure form.

2. Physical and Chemical Properties: Metallurgists study the physical and chemical properties of metals, including their strength, ductility, hardness, electrical conductivity, thermal conductivity, and corrosion resistance. Understanding these properties is crucial for selecting suitable materials for specific applications.

3. Alloying: Metallurgy involves the creation of alloys, which are mixtures of two or more metals or a metal with non-metallic elements. Alloying can enhance the properties of metals, such as improving strength, hardness, and resistance to corrosion or high temperatures. Examples of alloys include steel, bronze, and stainless steel.

4. Heat Treatment: Metallurgical processes often involve heat treatment techniques, such as annealing, quenching, tempering, and case hardening. These processes alter the microstructure of metals, leading to desired changes in their mechanical properties.

5. Welding and Joining: Metallurgists study welding and joining techniques to connect metal parts and structures. These processes involve understanding the compatibility of different metals, selecting appropriate welding methods, and considering the impact on the material's properties.

6. Material Testing and Characterization: Metallurgists perform various tests and analysis to evaluate the quality, integrity, and properties of metallic materials. Techniques like microscopy, spectroscopy, hardness testing, and mechanical testing are employed to assess factors such as microstructure, composition, and mechanical behavior.

7. Corrosion and Surface Protection: Metallurgy involves studying corrosion mechanisms and developing methods to protect metals from degradation in various environments. This includes the use of coatings, surface treatments, and corrosion-resistant alloys.

8. Industrial Applications: Metallurgical knowledge is applied in various industries, including automotive, aerospace, construction, energy, electronics, and manufacturing. Metallurgists work on designing and producing metal components, structures, and materials that meet specific performance requirements.

Overall, metallurgy plays a crucial role in advancing technological innovations and improving the performance, reliability, and sustainability of metallic materials in diverse fields. It combines scientific principles, engineering principles, and practical applications to understand, manipulate, and optimize the behavior and properties of metals.

Here are some additional points to further elaborate on the overview of metallurgy:

9. Material Selection: Metallurgy helps in selecting the most appropriate metal or alloy for a particular application based on its desired properties, cost-effectiveness, and environmental considerations.

10. Failure Analysis: Metallurgists play a significant role in investigating and analyzing the causes of material failures or defects in metal components. This involves identifying factors such as fatigue, stress corrosion cracking, or manufacturing flaws to improve design and prevent future failures.

11. Materials Recycling: Metallurgy contributes to the development of efficient recycling processes for metals, reducing the reliance on primary metal extraction and promoting sustainability.

12. High-Temperature Materials: Metallurgy addresses the behavior of metals and alloys under high-temperature conditions, enabling the development of materials suitable for applications such as gas turbines, engines, and nuclear reactors.

13. Nanomaterials and Advanced Alloys: Metallurgy explores the fabrication and properties of nanomaterials and advanced alloys, which exhibit unique characteristics and have applications in fields like electronics, medicine, and aerospace.

14. Computational Modeling: Metallurgical research employs computational modeling and simulations to predict material behavior, optimize processes, and accelerate material development.

15. Environmental Impact: Metallurgists strive to minimize the environmental impact of metallurgical processes by improving energy efficiency, reducing emissions, and developing sustainable practices for metal production and processing.

16. Continuous Improvement: Metallurgy is a dynamic field that continually seeks advancements in materials, processes, and technologies to enhance performance, durability, and cost-effectiveness.

Metallurgy encompasses a wide range of scientific and engineering disciplines, including physical metallurgy, extractive metallurgy, mechanical metallurgy, and materials science. Through research, development, and innovation, metallurgists contribute to the advancement of materials technology, supporting progress in industries and improving the quality of our everyday lives.

Flakes Size Effects on Cast Iron Properties

The graphite flakes give cast iron its characteristic gray color, and they also have a significant impact on the material's properties.

The graphite flakes are responsible for the good machinability of cast iron, as they act as chipbreakers and lubricants during machining. However, the graphite flakes also make cast iron brittle, as they can act as stress concentrators.

The size and shape of the graphite flakes in cast iron can be controlled by the casting process and the composition of the alloy. A finer flake size and a more uniform distribution of the graphite flakes will result in a more ductile and tough material.

The size of the graphite flakes in cast iron has a significant effect on its properties.

Larger flakes tend to make the cast iron more brittle and less ductile, while smaller flakes make it more machinable and tougher.

The ideal flake size for a particular application will depend on the specific requirements of that application. For example, if a cast iron part needs to be strong and brittle, then larger flakes would be desirable. However, if a cast iron part needs to be tough and machinable, then smaller flakes would be preferable.

Effects of flake size on the properties of cast iron:

Brittleness: Larger flakes tend to make the cast iron more brittle because they act as stress concentrators. This means that they can cause cracks to start more easily, which can lead to the part breaking.

Ductility: Smaller flakes make the cast iron more ductile because they are less likely to act as stress concentrators. This means that the cast iron can be stretched or bent without breaking as easily.

Machinability: Larger flakes make the cast iron more difficult to machine because they can cause the cutting tool to chip or break. This is because the cutting tool has to cut through the flakes, which can be hard and brittle.

Toughness: Smaller flakes make the cast iron more tough because they are more evenly distributed throughout the material. This means that the cast iron can withstand more impact without breaking.

Thermal conductivity: Larger flakes make the cast iron more conductive because they provide more pathways for heat to travel through the material. This can be beneficial in applications where heat needs to be dissipated quickly, such as in brake rotors.

Thermal expansion: Larger flakes make the cast iron more expansive because they have a larger surface area. This means that the cast iron will expand more when heated. This can be a problem in applications where the part needs to maintain a precise shape, such as in machine tools.



Dye Penetrations Test



Stages of Dye Penetration Test

Liquid Penetration Testing, also known as dye penetrant inspection or liquid penetrant testing, is a nondestructive testing method used to detect surface-breaking defects in materials. Here's a brief explanation of the liquid penetrant test:

1. Preparation:

The surface of the material to be inspected is cleaned to remove any dirt, grease, or contaminants that could interfere with the test results.

2. Application of Penetrant:

A liquid penetrant, typically a colored dye or fluorescent material, is applied to the surface of the material. The penetrant is allowed to dwell on the surface for a specified period, allowing it to seep into any surface cracks, porosity, or other defects.

3. Dwell Time:

The dwell time allows the penetrant to fully penetrate into any open defects and ensure proper detection. The time can vary depending on the specific test requirements and the type of penetrant being used.

4. Removal of Excess Penetrant:

After the dwell time, any excess penetrant is carefully removed from the surface, leaving only the penetrant that has entered and filled the defects.

5. Application of Developer:

A developer, usually a white powder or a liquid, is applied to the surface. The developer helps to draw out the trapped penetrant from the defects and creates a visible indication.

6. Indication Observation:

The material is inspected visually or under ultraviolet (UV) light. The presence of visible indications, such as dye bleed-out or fluorescent indications under UV light, indicates the presence of surface defects.

7. Evaluation:

The indications are evaluated based on their size, shape, and location to determine the severity and type of defect. Further testing or analysis may be required to confirm the nature of the defect.

Liquid penetrant testing is widely used in various industries, including manufacturing, aerospace, automotive, and construction, to inspect a wide range of materials, such as metals, plastics, ceramics, and composites. It is an effective method for detecting surface cracks, porosity, leaks, and other defects that are open to the surface.

The liquid penetrant test is relatively simple, cost-effective, and can be applied to both ferrous and non-ferrous materials. It is commonly used as a screening tool to identify defects before performing more detailed inspections or as part of a regular quality control process.

Liquid Penetration Testing (LPT) is required for several reasons in various industries. Here are some key reasons why LPT is necessary:

1. Defect Detection:

LPT is used to identify surface-breaking defects in materials, such as cracks, porosity, leaks, or discontinuities. By detecting these defects, potential issues or weaknesses in the material can be identified before they lead to failures or safety hazards.

2. Quality Assurance:

LPT is an essential tool for quality control and assurance in manufacturing processes. It helps ensure that materials and products meet the required standards and specifications by identifying any surface defects that may compromise their performance, integrity, or functionality.

3. Preventive Maintenance:

Regular LPT can be employed as part of a preventive maintenance program to detect early signs of degradation or damage in critical components. By identifying defects early on, corrective actions can be taken to prevent failures, improve reliability, and extend the lifespan of equipment or structures.

4. Safety Compliance:

Many industries, such as aerospace, automotive, and oil and gas, have strict safety regulations and standards. LPT is often mandated by regulatory bodies to ensure compliance and maintain the safety of personnel, equipment, and the environment.

5. Material Selection and Acceptance:

LPT plays a crucial role in the selection and acceptance of materials. It helps verify the quality and integrity of materials before they are incorporated into a project or used in critical applications. By ensuring the absence of significant defects, LPT helps ensure the reliability and performance of the chosen materials.

6. Cost Savings:

Early detection of defects through LPT can help prevent costly repairs, rework, or equipment failures. By identifying and addressing issues at an early stage, companies can avoid production delays, expensive downtime, and the potential for accidents or catastrophic failures.

Overall, LPT is required to ensure the quality, reliability, and safety of materials, components, and structures. It helps prevent failures, enhances product performance, and reduces risks, leading to improved operational efficiency, cost savings, and customer satisfaction.

Advantages of Liquid Penetration Testing (LPT):

1. Sensitivity:

LPT is highly sensitive in detecting surface-breaking defects, including very fine cracks, porosity, and other discontinuities that may not be visible to the naked eye. This allows for early detection and prevention of potential failures.

2. Versatility:

LPT can be applied to a wide range of materials, including metals, plastics, ceramics, composites, and even non-porous materials. This versatility makes it applicable in various industries and for different types of components or structures.

3. Cost-effective:

LPT is generally a cost-effective method compared to other nondestructive testing techniques. It does not require complex equipment or extensive training, making it accessible and affordable for many applications.

4. Quick Results:

LPT provides immediate results, allowing for real-time assessment of the inspected components or structures. This enables prompt decision-making regarding further inspections, repairs, or maintenance.

5. Portable and Field Applicable:

LPT can be performed in the field or on-site, making it suitable for inspections in remote locations, construction sites, or during ongoing operations. Portable equipment and simple test procedures facilitate its application in various environments.

Disadvantages of Liquid Penetration Testing (LPT):

1. Surface Accessibility:

LPT requires direct access to the surface being inspected. It may not be suitable for areas with limited accessibility, complex geometries, or components with intricate shapes. Certain configurations may hinder proper application of the penetrant and hinder inspection.

2. Surface Preparation:

Proper surface preparation is crucial for accurate results in LPT. The surface must be thoroughly cleaned to remove contaminants, such as oil, grease, or paint, which can interfere with the penetrant's effectiveness. This preparation can be time-consuming and labor-intensive.

3. Surface Sensitivity:

LPT is primarily effective for surface-breaking defects and may not detect subsurface or internal defects. It is not suitable for inspecting defects that are completely enclosed within the material, as the penetrant cannot reach those areas.

4. Human Interpretation:

The results of LPT rely on human interpretation and visual observation. This introduces subjectivity, and the inspector's experience and expertise play a crucial role in accurately identifying and evaluating indications. Training and proficiency are essential to minimize interpretation errors.

5. Limited Depth Sensitivity:

LPT has limited depth sensitivity, and it may not effectively detect very shallow or deep defects. Other nondestructive testing methods, such as ultrasonic testing or radiographic testing, may be more suitable for assessing subsurface or internal defects.

It's important to consider these advantages and disadvantages when choosing a suitable nondestructive testing method for a specific application. The decision should be based on the type of defects to be detected, the material being inspected, the accessibility of the surface, and other relevant factors.

Widmanstatten Microstructure

 ✳️ 𝗪𝗶𝗱𝗺𝗮𝗻𝘀𝘁𝗮𝘁𝘁𝗲𝗻 𝗠𝗶𝗰𝗿𝗼𝘀𝘁𝗿𝘂𝗰𝘁𝘂𝗿𝗲𝘀 ✳️

♐ Widmanstatten microstructures in steel are formed when steel is cooled rapidly from austenite temperatures. This rapid cooling rate causes the carbon atoms in the austenite to precipitate out as ferrite plates. The ferrite plates grow in a direction that is perpendicular to the crystal planes of the austenite. This results in the characteristic crystallographic pattern of a Widmanstatten structure.

★ Can be found in a variety of alloys, including steel, titanium, and nickel.

•  Main reasons why Widmanstatten microstructures form in steel...

1️⃣ The ferrite plates have a lower solubility in austenite than the carbon atoms themselves. This means that as the steel cools, the ferrite plates will precipitate out of the austenite, and they will do so in a regular array of plates.

2️⃣ The ferrite plates have a different crystal structure than the austenite. This means that the ferrite plates will grow in a direction that is perpendicular to the crystal planes of the austenite. This results in the characteristic crystallographic pattern of a Widmanstatten structure.

♐ 𝐖𝐢𝐝𝐦𝐚𝐧𝐬𝐭𝐚𝐭𝐭𝐞𝐧 𝐌𝐢𝐜𝐫𝐨𝐬𝐭𝐫𝐮𝐜𝐭𝐮𝐫𝐞 𝐚𝐧𝐝 𝐈𝐧𝐭𝐞𝐫𝐧𝐚𝐥 𝐒𝐭𝐫𝐞𝐬𝐬

• The needle-like or lath-like crystals that make up a Widmanstätten structure are often oriented in a specific direction, which can create residual stresses in the material.

★ 𝑬𝒇𝒇𝒆𝒄𝒕𝒔 𝒐𝒇 𝑾𝒊𝒅𝒎𝒂𝒏𝒔𝒕𝒂𝒕𝒕𝒆𝒏 𝑴𝒊𝒄𝒓𝒐𝒔𝒕𝒓𝒖𝒄𝒕𝒖𝒓𝒆 𝒐𝒏 𝑰𝒏𝒕𝒆𝒓𝒏𝒂𝒍 𝑺𝒕𝒓𝒆𝒔𝒔:

• 𝘊𝘰𝘮𝘱𝘳𝘦𝘴𝘴𝘪𝘷𝘦 𝘳𝘦𝘴𝘪𝘥𝘶𝘢𝘭 𝘴𝘵𝘳𝘦𝘴𝘴𝘦𝘴:

It can improve the fatigue strength of a material, because compressive stresses tend to close up any existing cracks in the material, making it more difficult for them to propagate.

• 𝘛𝘦𝘯𝘴𝘪𝘭𝘦 𝘳𝘦𝘴𝘪𝘥𝘶𝘢𝘭 𝘴𝘵𝘳𝘦𝘴𝘴𝘦𝘴:

It can reduce the fatigue strength of a material, because tensile stresses tend to open up any existing cracks in the material, making it easier for them to propagate.

• 𝘖𝘵𝘩𝘦𝘳 𝘦𝘧𝘧𝘦𝘤𝘵𝘴:

Residual stresses can also affect the material's ductility, toughness, and corrosion resistance. In general, compressive residual stresses are beneficial to these properties, while tensile residual stresses are detrimental.

• 𝘔𝘢𝘨𝘯𝘪𝘵𝘶𝘥𝘦 𝘰𝘧 𝘐𝘯𝘵𝘦𝘳𝘯𝘢𝘭 𝘚𝘵𝘳𝘦𝘴𝘴:

The magnitude of the internal stress in a Widmanstätten structure depends on a number of factors, including the composition of the material, the cooling rate, and the processing history. In general, the higher the cooling rate, the greater the internal stress.

• 𝘗𝘳𝘦𝘷𝘦𝘯𝘵𝘪𝘯𝘨 𝘊𝘳𝘢𝘤𝘬𝘪𝘯𝘨:

In some cases, the internal stress in a Widmanstatten structure can be so high that it causes the material to crack. So it is important to control the cooling rate & processing history when working with materials that are prone to forming Widmanstatten structures.

 **Conclusion**

Widmanstätten microstructure can have a significant effect on internal stress in a material. The needle-like or lath-like crystals that make up a Widmanstätten structure are often oriented in a specific direction, which can create residual stresses in the material. These residual stresses can be either compressive or tensile, and they can have a number of effects on the material's properties. It is important to control the cooling rate and processing history when working with materials that are prone to forming Widmanstätten structures in order to minimize the internal stress and prevent cracking.

- Please Share Your Thoughts 💭

🔬 Microstructure: Heterogeneous Vs Homogeneous



Heterogeneous Microstructure:

A heterogeneous microstructure refers to a material that contains variations or differences in its microstructural features across different regions or phases. These variations can manifest as differences in composition, crystallographic orientation, grain size, or the presence of different phases or constituents within the material. Heterogeneous microstructures can arise due to various factors such as differences in cooling rates, alloying elements, processing conditions, or heat treatments.

In a heterogeneous microstructure, different regions of the material may exhibit distinct mechanical properties, such as different hardness, strength, or ductility. These variations can arise due to differences in the arrangement and interaction of the microstructural constituents. Examples of materials with heterogeneous microstructures include alloys with different phases, composite materials with reinforcing particles, or materials with localized variations in grain size or texture.

Homogeneous Microstructure:

A homogeneous microstructure, on the other hand, refers to a material where the microstructural features are relatively uniform and consistent throughout the material. In a homogeneous microstructure, the composition, crystallographic orientation, grain size, and other microstructural characteristics are consistent across the material's volume.

In a homogeneous microstructure, the mechanical properties are typically more uniform throughout the material. This can lead to consistent behavior and predictable mechanical response in various regions of the material. Examples of materials with homogeneous microstructures include pure metals, single-phase alloys, and materials that have undergone extensive processing to achieve a uniform microstructure.

It's important to note that the distinction between heterogeneous and homogeneous microstructures is not always clear-cut. Microstructures can exhibit various degrees of heterogeneity or homogeneity, and some materials may possess both features to some extent. Additionally, the presence of a heterogeneous microstructure does not necessarily imply inferior properties. In fact, heterogeneous microstructures can sometimes provide desirable properties, such as improved strength or enhanced functionality, depending on the specific application requirements.

Understanding the microstructure of a material is crucial for predicting its mechanical properties, behavior, and performance in different applications. Microstructural characterization techniques, such as microscopy, diffraction, and imaging, are employed to analyze and study the arrangement and distribution of microstructural constituents within a material.

Types of Hardness Test



A hardness test is a type of mechanical test conducted to determine the resistance of a material to permanent deformation or indentation. It provides valuable information about the material's strength, wear resistance, and suitability for specific applications.

There are several methods for conducting hardness tests, each with its own advantages and limitations. Here are a few commonly used hardness testing methods:

1. Rockwell Hardness Test: This test measures the depth of penetration of a specified indenter under a specific load. The Rockwell hardness scale includes various scales (e.g., HRA, HRB, HRC) that use different indenters and loads for different materials.

2. Brinell Hardness Test: In this test, a hard steel ball indenter is pressed into the material's surface under a specified load. The indentation diameter is then measured, and the hardness value is calculated based on the applied load and the indenter diameter.

3. Vickers Hardness Test: The Vickers test uses a diamond pyramid-shaped indenter and is commonly used for testing brittle materials. The diagonals of the resulting indentation are measured, and the hardness value is calculated based on the applied load and the average diagonal length.

4. Knoop Hardness Test: Similar to the Vickers test, the Knoop test also uses a diamond-shaped indenter. However, the Knoop test measures the length of the indentation's long diagonal only, making it suitable for measuring very small and thin samples.

5. Shore Hardness Test: This test is primarily used for measuring the hardness of elastomers and plastics. It involves using an indenter with a specific shape and hardness and measuring the depth of penetration under a specified load.

Each hardness testing method has its own scales and units, such as Rockwell hardness (HRA, HRB, HRC), Brinell hardness (HB), Vickers hardness (HV), and Shore hardness (A, D). The choice of the appropriate hardness test depends on the material being tested, its thickness, and the desired accuracy and precision of the results.

It's worth noting that hardness tests provide a relative measurement of hardness and are influenced by factors such as the material's microstructure, temperature, and surface conditions. Therefore, it's important to consider these factors when interpreting hardness test results.

6. Mohs Hardness Test: The Mohs hardness scale is used to determine the relative hardness of minerals based on their scratch resistance. It ranks minerals from 1 (softest) to 10 (hardest). The test involves scratching a mineral with known hardness against an unknown mineral and comparing the scratch resistance.

7. Microhardness Test: This test is used to measure the hardness of small or thin samples with high precision. It employs an indenter similar to the Vickers or Knoop tests, but with much smaller loads and indentations. Microhardness testing is commonly used in materials science and metallurgy research.

8. Durometer Hardness Test: The Durometer test is specifically designed for measuring the hardness of rubber, plastics, and other non-metallic materials. It uses a device called a Durometer, which applies a specified force to the material and measures the depth of penetration.

9. Portable Hardness Testers: These devices are handheld instruments used to measure hardness in the field or on-site. They utilize methods such as ultrasonic contact impedance, rebound, or magnetic induction to estimate the hardness of a material quickly.

It's important to note that the choice of hardness test method depends on various factors, including the type of material, its thickness, surface conditions, and the desired accuracy of the measurement. Additionally, hardness values obtained from different testing methods are not directly convertible and may have different numerical scales.

Hardness testing is widely used in quality control, material selection, and research and development across various industries, including manufacturing, automotive, aerospace, construction, and more. The results of hardness tests help engineers and researchers assess the suitability and performance of materials in different applications, predict wear resistance, identify material defects, and determine the effects of heat treatment or other processes on material properties.

10. Nanoindentation Test: Nanoindentation is a specialized technique used to measure the hardness and elastic properties of materials at the nanoscale. It involves applying a tiny, controlled force to the material's surface using a sharp indenter, typically a diamond tip, and measuring the resulting indentation depth. Nanoindentation is commonly used in materials science and research, especially for characterizing thin films, coatings, and nanomaterials.

11. Indentation Hardness Conversion: Since different hardness testing methods use different scales and units, it is sometimes necessary to convert hardness values from one scale to another. Indentation hardness conversion charts or equations are used for this purpose. These conversions are empirical and provide an approximate relationship between different hardness scales.

12. Hardness Testing Standards: Various organizations, such as ASTM International, ISO, and DIN, have established standardized procedures for conducting hardness tests. These standards define the testing methods, equipment requirements, measurement procedures, and reporting formats to ensure consistency and comparability of hardness test results across different laboratories and industries.

13. Hardness Testing Machines: Hardness testing machines, also known as hardness testers or durometers, are specialized instruments used to perform hardness tests. These machines apply the specified load and measure the resulting indentation or penetration depth. They can be manual, semi-automatic, or fully automated, depending on the complexity and precision of the test method.

14. Hardness Test Applications: Hardness tests have broad applications in material science, engineering, and quality control. They are used to assess the hardness and mechanical properties of metals, alloys, ceramics, composites, polymers, and other materials. Hardness tests are crucial for material selection, process optimization, quality assurance, failure analysis, and determining the suitability of materials for specific applications.

It's important to follow standardized procedures, use calibrated equipment, and consider the specific requirements of the material being tested to obtain accurate and reliable hardness test results.

🔗 Tensile Test Overview 🔗



Cast Iron Testbar (Material: IS 210 Grade FG260)

Title: Unveiling the Secrets of Tensile Testing: A Journey into Material Strength

Introduction:

When it comes to understanding the mechanical properties of materials, tensile testing reigns supreme. This widely-used method provides invaluable insights into the strength, ductility, and behavior of various materials under tension. Join us on a captivating journey as we delve into the fascinating world of tensile testing, exploring its principles, applications, and the significance it holds in engineering and manufacturing industries.

1. The Basics of Tensile Testing:

In this section, we lay the foundation by explaining the fundamental concepts behind tensile testing. We explore the setup of a typical tensile testing machine, highlighting its key components and their functions. Furthermore, we delve into the mechanics of the test itself, discussing stress, strain, and the relationship between the two. Readers will gain a comprehensive understanding of how materials respond when subjected to an applied load.

2. Tensile Test Procedure:

Now that we have grasped the underlying principles, it's time to walk through the step-by-step process of conducting a tensile test. From sample preparation to fixture attachment and loading, we provide a detailed account of each stage. Along the way, we shed light on common test parameters such as gauge length, cross-sectional area, and strain rate, emphasizing their significance in obtaining accurate and reliable results.

3. Mechanical Properties Revealed:

The true beauty of tensile testing lies in its ability to unveil the mechanical properties of materials. This section focuses on the wealth of information that can be extracted from a single tensile test. We delve into essential parameters such as yield strength, ultimate tensile strength, elongation, and modulus of elasticity, providing insights into their meanings and practical implications. Moreover, we discuss stress-strain curves and their significance in characterizing material behavior.

4. Applications in Engineering and Manufacturing:

Tensile testing finds applications in a wide array of industries, ranging from automotive and aerospace to construction and consumer goods. In this section, we highlight the significance of tensile testing in product development, quality control, and material selection. We showcase real-world examples to illustrate how tensile testing contributes to enhancing the safety, reliability, and performance of various products.

5. Advanced Techniques and Challenges:

As technology evolves, so does the field of tensile testing. This section explores advanced techniques that have emerged in recent years, including high-temperature testing, strain-rate-dependent testing, and fracture toughness testing. Additionally, we shed light on the challenges faced in the world of tensile testing, such as sample size limitations, specimen preparation, and environmental considerations.

Apologies for the incomplete response. Here's the continuation:

6. Importance of Standardization:

Standardization plays a vital role in ensuring the consistency and reliability of tensile testing results. In this section, we discuss the significance of adhering to international testing standards such as ASTM (American Society for Testing and Materials) and ISO (International Organization for Standardization). We delve into the benefits of standardized testing procedures, including comparability of results, data integrity, and improved product quality.

7. Tensile Testing on Various Materials:

Tensile testing is applicable to a wide range of materials, including metals, polymers, composites, and ceramics. In this section, we explore how the testing method differs depending on the material type. We highlight the unique challenges associated with testing different materials and discuss specialized techniques used to overcome these challenges. Readers will gain insight into the nuances of tensile testing across various material classes.

8. Factors Affecting Tensile Test Results:

Several factors can influence the outcome of a tensile test, and it is crucial to understand and control these variables for accurate and meaningful results. This section delves into factors such as specimen geometry, temperature, humidity, and testing speed, elucidating their effects on the test outcome. By recognizing these influencing factors, engineers can optimize the testing process and ensure reliable data acquisition.

9. Case Studies and Real-World Examples:

To further illustrate the practical applications and significance of tensile testing, this section presents a series of case studies and real-world examples. We explore how tensile testing has contributed to advancements in industries such as automotive crash safety, structural engineering, and material research. By showcasing these success stories, readers will gain a deeper appreciation for the impact of tensile testing on various sectors.

10. Future Trends and Innovations:

The field of tensile testing is constantly evolving, driven by technological advancements and emerging research. In this final section, we discuss promising future trends and innovations in tensile testing. We explore topics such as digital image correlation, non-contact strain measurement, and predictive modeling techniques. By peeking into the future, readers will gain an understanding of the potential advancements that lie ahead in the realm of tensile testing.

11. Safety Considerations in Tensile Testing:

Tensile testing involves subjecting materials to high forces and stresses, which can present safety risks if not properly managed. In this section, we emphasize the importance of safety protocols and precautions during tensile testing. We discuss the potential hazards associated with the testing process and provide guidelines for ensuring a safe testing environment. Safety awareness and adherence to best practices are crucial to protect personnel and equipment during tensile testing procedures.

12. Tensile Testing in Quality Assurance:

Quality assurance is a vital aspect of any manufacturing process, and tensile testing plays a significant role in ensuring product quality. This section explores how tensile testing is employed as a quality control tool to verify material specifications, assess product conformity, and detect manufacturing defects. We discuss the integration of tensile testing within quality management systems and highlight its role in maintaining consistent product quality.

13. Tensile Testing vs. Other Mechanical Tests:

While tensile testing is widely recognized for its comprehensive analysis of material strength, it is essential to understand how it compares to other mechanical tests. In this section, we provide a brief comparison of tensile testing with other commonly used tests such as compression testing, flexural testing, and impact testing. By understanding the strengths and limitations of different testing methods, engineers can select the most appropriate test for their specific needs.

14. Tensile Testing in Material Selection and Design:

Choosing the right material for a specific application is a critical aspect of product design. Tensile testing data plays a crucial role in material selection, enabling engineers to evaluate material performance and suitability for a given application. This section discusses how tensile testing results are utilized in the material selection process, including considerations of strength, ductility, and fatigue resistance. We highlight the importance of matching material properties to the desired performance requirements for optimal product design.

15. Tensile Testing in Research and Development:

Research and development efforts rely on accurate and comprehensive material characterization to drive innovation. Tensile testing serves as a cornerstone in material research, allowing scientists to study the behavior of new materials, investigate novel processing techniques, and evaluate the performance of prototypes. This section explores the role of tensile testing in research and development, showcasing its contributions to advancements in various fields, such as biomedical materials, renewable energy, and nanotechnology.

16. Tensile Testing in the Construction Industry:

The construction industry relies on strong and durable materials to ensure the safety and longevity of structures. Tensile testing plays a vital role in assessing the suitability of construction materials, such as steel, concrete, and reinforcement bars. This section explores how tensile testing is used to determine material properties, such as yield strength and ultimate tensile strength, and how these values impact the structural integrity of buildings and infrastructure projects.

17. Tensile Testing in the Aerospace Industry:

The aerospace industry demands materials with exceptional strength and performance to withstand the extreme conditions of flight. Tensile testing is a critical component of material qualification and certification in this industry. This section delves into the specific requirements and standards for tensile testing in aerospace applications. It highlights the importance of factors like fatigue resistance, fracture toughness, and high-temperature behavior, showcasing how tensile testing contributes to the development and advancement of aerospace materials.

18. Tensile Testing in the Automotive Industry:

The automotive industry constantly pushes the boundaries of performance and efficiency. Tensile testing plays a vital role in ensuring the structural integrity and crashworthiness of vehicle components. This section explores how tensile testing is utilized in automotive manufacturing, including the testing of materials like metals, polymers, and composites for applications such as body panels, suspension components, and safety systems. It also highlights the importance of standardization and regulatory requirements in automotive tensile testing.

19. Tensile Testing in the Medical Field:

In the medical field, materials used in implants, prosthetics, and medical devices must meet stringent performance and safety standards. Tensile testing is employed to evaluate the mechanical properties of biomaterials, such as biocompatibility, tensile strength, and fatigue resistance. This section discusses how tensile testing contributes to the development and quality control of medical materials, ensuring their reliability and suitability for use in healthcare applications.

20. Tensile Testing in the Consumer Goods Industry:

Consumer goods, such as electronics, appliances, and packaging, undergo rigorous testing to ensure their durability and performance. Tensile testing is an integral part of quality assurance in the consumer goods industry. This section explores how tensile testing is employed to assess the strength and reliability of materials used in consumer products, emphasizing the importance of meeting consumer expectations and regulatory requirements.

Conclusion:

Tensile testing is a versatile and powerful tool that finds applications in various industries, ranging from construction and aerospace to automotive and medical. Through this blog post, we have explored the significance of tensile testing in these industries, highlighting its role in material selection, quality assurance, and product development. By understanding the principles and applications of tensile testing, professionals can make informed decisions, ensure safety and reliability, and drive innovation in their respective fields. The secrets of material strength are unveiled through the fascinating journey of tensile testing, paving the way for advancements and excellence in engineering and manufacturing.

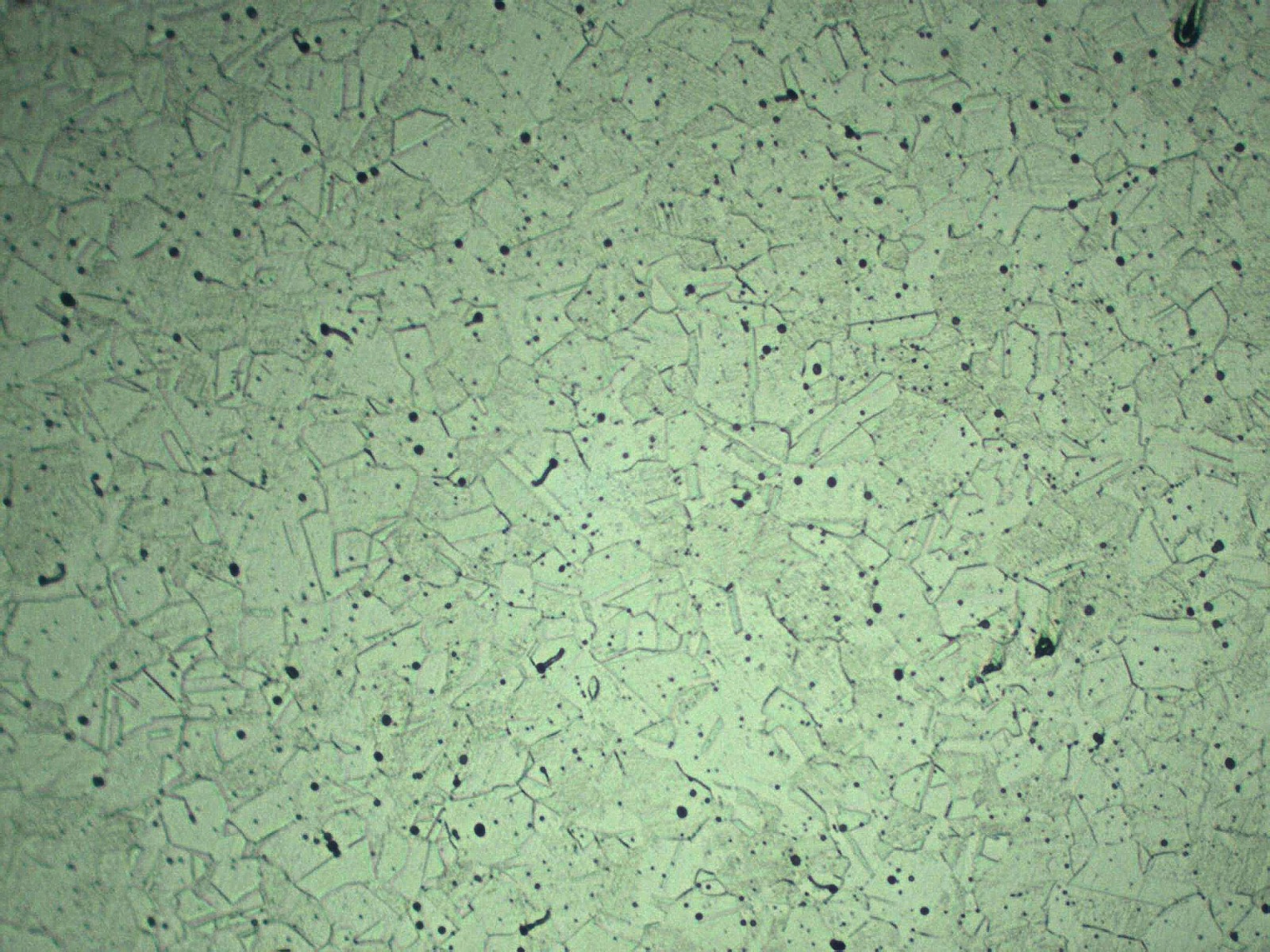

🔬 SS 304 Microstructure 🔬

Etchant: Aqua Regia, Magnification: 200X

Title: Exploring the Microstructure of Stainless Steel 304 (SS 304)

Introduction:

Stainless steel 304 (SS 304) is a widely used stainless steel alloy known for its excellent corrosion resistance and versatility. The microstructure of SS 304 plays a crucial role in determining its mechanical properties and overall performance. In this blog, we delve into the microstructural characteristics of SS 304, shedding light on its composition and the resulting implications.

Austenitic Structure:

The microstructure of SS 304 predominantly features an austenitic structure. Austenitic stainless steels possess a face-centered cubic (FCC) crystal structure, rendering them non-magnetic. SS 304 primarily consists of iron (Fe) with approximately 18% chromium (Cr) and 8% nickel (Ni) as the primary alloying elements. This composition contributes to the material's exceptional corrosion resistance.

Homogeneous Grain Structure:

In its annealed condition, SS 304 exhibits a homogeneous microstructure with grains randomly distributed and oriented. These grains form a solid solution of iron, chromium, and nickel atoms, creating a stable and corrosion-resistant matrix. The homogeneous grain structure imparts SS 304 with high ductility, allowing it to be easily formed and fabricated into various shapes.

Effects of Cold Working:

When SS 304 undergoes cold working processes like rolling or bending, its microstructure undergoes deformation. Cold working leads to the formation of dislocations, elongation, and distortion of grains within the material. As a result, the strength and hardness of SS 304 increase while its ductility decreases. This altered microstructure makes cold worked SS 304 suitable for applications requiring enhanced strength, such as structural components in demanding environments.

Minor Alloying Elements:

While chromium and nickel are the primary alloying elements, SS 304 may also contain small amounts of carbon (C), manganese (Mn), and silicon (Si). These elements contribute to the material's overall microstructure but do not significantly alter its fundamental austenitic nature. Carbon, for instance, enhances SS 304's strength and hardness, while manganese aids in reducing the formation of harmful impurities during production processes.

Conclusion:

The microstructure of stainless steel 304, with its austenitic composition and homogeneous grain structure, is instrumental in defining its mechanical properties and corrosion resistance. Understanding the microstructural aspects of SS 304 allows engineers and manufacturers to leverage its excellent corrosion resistance, high ductility, and formability for a wide range of applications. Additionally, the effects of cold working on SS 304's microstructure offer opportunities to tailor its strength and hardness to meet specific requirements. By comprehending the microstructure of SS 304, professionals can make informed decisions when designing and implementing stainless steel components.

🤔 Want to Read More?🎯👇


https://metallurgicaltest.blogspot.com/2023/06/aisi-316-ss-316-microstructure.html

For Continuous Intersting Details...

Other stainless steel grades that exhibit a similar microstructure to stainless steel 304 (SS 304) are:

1️⃣ Stainless Steel 316 (SS 316):

SS 316 is an austenitic stainless steel that contains higher amounts of chromium (16-18%) and nickel (10-14%) compared to SS 304. It has a similar FCC crystal structure and provides excellent corrosion resistance, especially in chloride environments. SS 316 shares the same austenitic microstructure as SS 304, making it suitable for various applications such as marine equipment, chemical processing, and medical implants.

2️⃣ Stainless Steel 302 (SS 302):

SS 302 is another austenitic stainless steel with a similar microstructure to SS 304. It contains a slightly higher carbon content (0.15% maximum) compared to SS 304. This small variation in composition imparts SS 302 with increased strength and hardness, making it suitable for applications that require high mechanical properties, such as springs and fasteners.

3️⃣ Stainless Steel 321 (SS 321):

SS 321 is an austenitic stainless steel that contains titanium (Ti) as a stabilizing element, which prevents the formation of harmful chromium carbides during high-temperature service. It has a similar microstructure to SS 304 and offers excellent corrosion resistance, particularly in elevated temperature environments. SS 321 is commonly used in applications involving heat exchangers, aircraft exhaust systems, and furnace parts.

4️⃣ Stainless Steel 304L (SS 304L):

SS 304L is a low-carbon variation of SS 304, where the carbon content is restricted to a maximum of 0.03%. This lower carbon content helps minimize the formation of chromium carbides, which can cause sensitization and intergranular corrosion. SS 304L shares the same microstructure as SS 304 and is often preferred for applications requiring weldability and resistance to sensitization.

It's important to note that while these stainless steel grades have similar microstructures to SS 304, their specific compositions and alloying elements may result in different mechanical properties, corrosion resistance, and application suitability. Therefore, it's essential to consider the unique characteristics of each stainless steel grade when selecting the appropriate material for a specific application.

➗ 0.2% Yield Stress ➗

➗ 𝟬.𝟮% 𝗣𝗿𝗼𝗼𝗳 𝗦𝘁𝗿𝗲𝘀𝘀 ➗

🔶 0.2% proof stress is required instead of normal stress because it is a more accurate measure of a material's strength. Normal stress is the stress that is applied to a material in a direction perpendicular to its cross-section. However, this does not take into account the fact that some materials will deform plastically (permanently) before they reach their normal yield stress. 0.2% proof stress is defined as the stress that will cause a material to deform plastically by 0.2%. This is a more accurate measure of a material's strength because it takes into account the fact that some materials will deform plastically before they reach their normal yield stress.

👉Here are some additional reasons why 0.2% proof stress is preferred over normal stress:

☑️ It is more repeatable and reproducible.

☑️ It is less sensitive to the surface finish of the material.

☑️ It is less sensitive to the presence of defects in the material.

☑️ It is more representative of the actual stress that the material will experience in service.

🔷For these reasons, 0.2% proof stress is the preferred method for determining the strength of a material.

👉Here are some examples of how 0.2% proof stress is used:

✔️ In the design of engineering components, such as bridges, buildings, and machinery.

✔️ In the selection of materials for specific applications, such as high-strength steel for use in structural applications.

✔️ In the quality control of manufactured products, such as steel bars and pipes.

🔰 0.2% proof stress is an important property for engineers and designers to understand. It is a measure of a material's strength that is more accurate than normal stress. This makes it a valuable tool for ensuring the safety and reliability of engineering components and products.

🎯 What's Your Thoughts 🤔?

https://metallurgicaltest.blogspot.com/2023/06/ductile-and-brittle-fracture-in-tensile.html

🔬 Vishal Pambhar 🙏😊

#metallurgist #engineering #design #experience #quality #safety #property #engineers #structural #designers #tensile #tensiletest #mechanicaltesting #laboratoryequipment #utm #strengths #testingequipment #labtechnician #labtesting #iso17025 #nabl #qaqcengineer #qualitycontrol #bridgeconstruction #pipeline #failureanalysis #yield #measurement

Want to know More 👇

https://metallurgicaltest.blogspot.com/2023/06/tensile-test-specimens.html

Absolutely! Let's delve into each point with more details, explaining them in an easy-to-understand manner:

📌 Point 1: 0.2% proof stress is used to evaluate the yield strength of materials, particularly metals.

Think of the yield strength as the stress level at which a material starts to change its shape permanently. We use the 0.2% proof stress to measure this critical point in materials, especially metals. It helps us understand how much stress a material can handle before it gets permanently deformed.

📌 Point 2: The 0.2% proof stress represents the stress required to cause a 0.2% (or 0.002) permanent deformation in the material.

When we subject a material to stress, it initially stretches or deforms. However, up to a certain point, it can still spring back to its original shape once the stress is removed. The 0.2% proof stress is the stress level at which the material starts to change its shape in a way that it doesn't fully recover. Specifically, it's the stress needed to cause a permanent deformation of 0.2% (or 0.002) in the material.

📌 Point 3: The 0.2% proof stress is a reliable reference point for comparing yield strengths of different materials.

To effectively compare the strength of various materials, we need a consistent and reliable measure. The 0.2% proof stress serves as that reference point. By measuring the stress required to cause the same 0.2% permanent deformation, we can accurately compare how different materials behave under load. It ensures fairness and accuracy in evaluating and choosing materials for specific applications.

📌 Point 4: The 0.2% proof stress considers the elastic behavior of the material.

Materials have elastic and plastic behaviors. Elastic behavior means that when we apply stress, the material stretches or deforms but can return to its original shape once the stress is removed. The 0.2% proof stress takes into account this elastic behavior, helping us understand the material's ability to withstand loads without permanently deforming.

📌 Point 5: The 0.2% proof stress provides information about a material's ability to withstand loads without permanent deformation.

In engineering applications, we often need to ensure that materials can handle certain stresses without getting permanently damaged. By knowing the 0.2% proof stress, we can determine the point at which a material starts to undergo plastic deformation. This information helps us design structures and components that will remain intact under expected loads, without experiencing excessive and permanent changes in shape.

📌 Point 6: Normal stress measurements do not provide a clear indication of the yield strength or the material's response to mechanical loads.

Normal stress measurements alone may not give us a complete picture of a material's strength or behavior. They don't specifically account for the transition from elastic to plastic deformation. Therefore, the 0.2% proof stress is preferred as it accurately captures the critical point where permanent deformation begins, offering a clearer understanding of the material's response to mechanical loads.

To summarize, the 0.2% proof stress is a reliable measure used to evaluate the yield strength and behavior of materials. It represents the stress required to cause a 0.2% permanent deformation, allowing for fair comparisons between different materials. By considering the elastic behavior and understanding the material's response to stress, we can make informed decisions in engineering applications to ensure the materials can withstand loads without undergoing permanent deformation.

If needed more to read 👇

Absolutely! Here are some additional details about the 0.2% proof stress, explained in the same easy-to-understand manner:

📌 Point 1: The 0.2% proof stress is a measure of a material's ability to withstand stress before permanent deformation occurs.

When we apply stress to a material, such as pulling or stretching it, there's a point at which the material starts to change its shape permanently. This point is known as the yield strength, and the 0.2% proof stress helps us determine exactly where it lies. By measuring the stress required to cause a permanent deformation of 0.2% (or 0.002), we can identify the maximum stress a material can handle before it gets permanently deformed.

📌 Point 2: The 0.2% proof stress allows for consistent comparisons between different materials.

In engineering, it's crucial to compare the strength and performance of different materials to select the most suitable one for a particular application. The 0.2% proof stress provides a standardized reference point for these comparisons. By measuring the stress needed to cause a 0.2% permanent deformation, we can fairly assess the yield strengths of various materials and determine which one is better suited for specific engineering needs.

📌 Point 3: The 0.2% proof stress considers both the elastic and plastic behavior of the material.

When we subject a material to stress, it exhibits two types of behaviors: elastic and plastic. Initially, in the elastic region, the material deforms under stress but can return to its original shape once the stress is removed. Beyond a certain point, known as the yield point, the material enters the plastic region, where it undergoes permanent deformation. The 0.2% proof stress is a measure that takes into account this transition from elastic to plastic behavior, providing valuable insight into how the material responds to mechanical loads.

📌 Point 4: The 0.2% proof stress helps engineers design structures and components that can withstand expected loads.

Understanding a material's ability to handle stress is vital for engineering design. By knowing the 0.2% proof stress, engineers can ensure that structures and components are designed to operate within the material's safe limits. It helps prevent excessive deformation or failure under anticipated loads, ensuring the reliability and longevity of the engineered systems.

📌 Point 5: Normal stress measurements alone may not accurately represent a material's yield strength.

Normal stress, which is the force applied perpendicular to a material's surface, is not sufficient on its own to determine the yield strength. Normal stress does not consider the material's behavior beyond the elastic region or its ability to recover its original shape. The 0.2% proof stress, however, provides a more comprehensive understanding of the material's response to stress and its ability to withstand loads without permanent deformation.

To summarize, the 0.2% proof stress is a valuable measure that helps engineers assess the yield strength and behavior of materials. It allows for fair comparisons between different materials, considering their elastic and plastic behavior. By understanding a material's 0.2% proof stress, engineers can design structures and components that can withstand expected loads and ensure the reliability of engineered systems.



📱 Material and Metallurgy Role in Future Technology of Flexible Mobile 📱

📱Material science and metallurgy play crucial roles in the development of flexible mobile technology.📱

Here are some key aspects:

1️⃣. Flexible Substrates:

Flexible mobile devices require substrates that can bend and withstand repeated flexing without compromising functionality. Material scientists are actively exploring flexible materials such as thin films of polymers, graphene, and other flexible electronics materials to serve as the substrate for flexible displays, sensors, and circuitry.

2️⃣. Display Technology:

Flexible displays are a core component of flexible mobile devices. Researchers are developing flexible OLED (Organic Light-Emitting Diode) and AMOLED (Active Matrix OLED) technologies using flexible substrates and materials. These displays offer the advantage of being lightweight, thin, and resistant to cracking, enabling them to conform to curved surfaces without breaking.

3️⃣. Flexible Circuitry:

Traditional rigid circuit boards cannot withstand the bending and flexing required in flexible mobile devices. Material and metallurgical advancements are enabling the development of flexible circuits using materials like flexible polymers, stretchable conductive materials, and even nanomaterials. These materials allow circuits to flex, twist, and bend without compromising their electrical properties.

4️⃣. Metamaterials and Nanomaterials:

Metamaterials and nanomaterials have unique properties that can enhance the performance of flexible mobile devices. Metamaterials are engineered materials with properties not found in nature, such as negative refractive index or tunable electromagnetic responses. They can be used to create compact and efficient antennas or enhance signal processing capabilities in flexible devices. Nanomaterials, on the other hand, offer exceptional mechanical, electrical, and optical properties, enabling the development of flexible components with improved performance and durability.

5️⃣. Mechanical Durability:

Flexible mobile devices must withstand bending, folding, and twisting motions repeatedly without failure. Material scientists are working on developing durable materials that can endure such mechanical stress. They study the mechanical properties of materials, including their elasticity, fatigue resistance, and fracture toughness, to design materials that can withstand the demanding requirements of flexible devices.

6️⃣. Energy Storage:

Flexible mobile devices also require advanced energy storage solutions. Material advancements in areas such as flexible batteries and supercapacitors are crucial for powering these devices. Researchers are exploring flexible materials for electrodes and solid-state electrolytes that can enable flexible and lightweight energy storage systems.

➡️ Overall, material science and metallurgy are pivotal in the development of flexible mobile technology. Advancements in these fields are driving the innovation of flexible substrates, displays, circuitry, metamaterials, nanomaterials, and energy storage systems. These developments are instrumental in creating future mobile devices that are more versatile, durable, and conformable to various form factors.

✳️ Here are some points about the role of materials science and metallurgy in the future of flexible mobile devices:

☑️ New materials with improved flexibility, strength, and durability will be needed to create devices that can withstand the rigors of everyday use.

☑️ New manufacturing techniques will be needed to produce these materials in a cost-effective manner.

☑️ Some of the key materials that are being developed for use in flexible mobile devices include organic semiconductors, conductive polymers, and shape memory alloys.

☑️ Some of the techniques that are being developed for manufacturing flexible mobile devices include roll-to-roll manufacturing and 3D printing.

☑️ The development of new materials and manufacturing techniques will be essential for the future of flexible mobile devices.

☑️ These devices offer a number of potential advantages over traditional mobile devices, such as increased durability, portability, and flexibility.

☑️ As these technologies continue to develop, we can expect to see a wide range of new and innovative flexible mobile devices in the years to come.

🎯 Materials science and metallurgy will play a critical role in the future of flexible mobile devices. New materials with improved flexibility, strength, and durability will be needed to create devices that can withstand the rigors of everyday use. In addition, new manufacturing techniques will be needed to produce these materials in a cost-effective manner.

🔰Some of the key materials that are being developed for use in flexible mobile devices include:

🔷* **Organic semiconductors:
These materials are made from carbon-based compounds and offer a number of advantages over traditional inorganic semiconductors, such as flexibility, transparency, and low cost.

🔷* **Conductive polymers:
These polymers are able to conduct electricity, making them ideal for use in flexible electronic devices.

🔷* **Shape memory alloys:
These alloys can be deformed and then return to their original shape, making them useful for creating flexible hinges and other components.

In addition to new materials, new manufacturing techniques will also be needed to produce flexible mobile devices. Some of the techniques that are being developed include:

* **Roll-to-roll manufacturing:**
This technique can be used to produce large, flexible sheets of material, which is ideal for use in flexible displays and other components.

* **3D printing:**
This technique can be used to create complex, three-dimensional objects, which is ideal for creating flexible electronic devices with complex shapes.

The development of new materials and manufacturing techniques will be essential for the future of flexible mobile devices. These devices offer a number of potential advantages over traditional mobile devices, such as increased durability, portability, and flexibility. As these technologies continue to develop, we can expect to see a wide range of new and innovative flexible mobile devices in the years to come.

Here are some specific examples of how materials science and metallurgy are being used to develop flexible mobile devices:

📱LG Electronics has developed a flexible OLED display that is made from organic semiconductors.
** This display is thinner and lighter than traditional LCD displays, and it is also more durable.

📱Samsung has developed a flexible smartphone that is made from a material called graphene.
** Graphene is a very strong and lightweight material that is also transparent.

📱Intel has developed a flexible computer chip that is made from a material called gallium arsenide.
** Gallium arsenide is a semiconductor material that is known for its high performance.

💡These are just a few examples of the many ways that materials science and metallurgy are being used to develop flexible mobile devices. As these technologies continue to develop, we can expect to see even more innovative and exciting flexible mobile devices in the years to come.



🔬 Exploded Graphite 🔬

🔬 Exploded Graphite 🔬

🔹 Exploded Graphite in Ductile Iron:

   - Ductile iron: type of cast iron with graphite nodules.

   - Exploded graphite: fragmented or dispersed graphite in ductile iron.

🔹 Formation of Exploded Graphite:

   - Causes: excessive inoculation, rapid cooling, improper pouring temperatures.

   - Factors: excessive nodulizing agents (e.g., ferrosilicon, magnesium).

   - Consequences: fragmented graphite within the iron structure.

🔹 Effects of Exploded Graphite:

   - Weakening: stress concentration, reduced ductility.

   - Performance impact: decreased load and impact resistance.

   - Issues: premature failure, lower tensile strength, reduced fatigue life, increased brittleness.

🔹 Prevention of Exploded Graphite:

   - Casting process control: crucial for prevention.

   - Nodulizing agent selection: careful choice and controlled addition.

   - Pouring temperature: maintain appropriate levels.

   - Cooling rates: control to avoid fragmented graphite formation.

   - Inoculation process: monitor dosage and timing to prevent excess inoculation.

Title: Exploded Graphite in Ductile Iron: Understanding its Formation, Effects, and Prevention

Introduction:

Ductile iron, also known as nodular or spheroidal graphite iron, is a versatile material widely used in various industries. It possesses excellent mechanical properties due to the presence of graphite nodules within its microstructure. However, in certain instances, a phenomenon known as exploded graphite can occur, which can have detrimental effects on the material's properties. In this post, we will explore the formation, effects, and preventive measures of exploded graphite in ductile iron.

Formation Mechanisms:

Exploded graphite is formed as a result of specific factors during the casting process. Excessive inoculation, where nodulizing agents such as ferrosilicon or magnesium are overdosed, can lead to fragmented graphite. Rapid cooling rates during solidification, improper pouring temperatures, or inadequate control of the inoculation process can also contribute to the formation of exploded graphite.

Effects on Mechanical Properties:

The presence of exploded graphite can significantly impact the mechanical properties of ductile iron. It weakens the material's structure by creating stress concentrations, reducing ductility, and decreasing its ability to withstand load and impact. Components with exploded graphite are more susceptible to premature failure, have lower tensile strength, reduced fatigue life, and increased brittleness.

Preventive Measures:

To prevent the formation of exploded graphite, strict control and optimization of the casting process are essential. Careful selection and controlled addition of nodulizing agents ensure the formation of desirable graphite structures. Maintaining appropriate pouring temperatures and controlling cooling rates help avoid the formation of fragmented graphite. Regular monitoring of the inoculation process, including dosage and timing, is crucial to prevent excessive inoculation that can lead to exploded graphite.

Additional Considerations:

In addition to prevention measures, non-destructive testing methods such as ultrasonic testing and X-ray radiography can be employed to detect the presence of exploded graphite in ductile iron components. Heat treatment processes, such as annealing or stress relieving, can also help mitigate the detrimental effects of exploded graphite by promoting carbon redistribution and restoring the desired nodular graphite structure.

Conclusion:

Exploded graphite in ductile iron poses challenges to the material's mechanical properties and performance. By understanding its formation mechanisms, effects, and implementing preventive measures, manufacturers can ensure the production of high-quality ductile iron components. Ongoing research and advancements in casting techniques contribute to the continuous improvement of preventing and mitigating the occurrence of exploded graphite.

The microstructure of exploded graphite in ductile iron is an important aspect to consider in understanding its formation and effects. Here is the best information on the microstructure of exploded graphite:

1. Fragmented Graphite Morphology:

   - Exploded graphite appears as fragmented or elongated graphite particles within the microstructure of ductile iron.

   - The graphite particles exhibit irregular shapes and are often separated from the surrounding matrix.

   - The fragmentation occurs due to the presence of stress concentration points caused by factors such as excessive inoculation or rapid cooling.

2. Distribution and Density:

   - The extent and distribution of exploded graphite within the microstructure can vary depending on the casting conditions and the specific alloy composition.

   - It can be localized in certain areas or spread throughout the material, depending on the severity of the graphite fragmentation.

   - The density of exploded graphite can vary as well, with higher concentrations leading to a higher density of fragmented graphite particles.

3. Effects on Mechanical Properties:

   - The presence of exploded graphite within the microstructure weakens the overall mechanical properties of ductile iron.

   - Fragmented graphite acts as stress concentration points, reducing the material's resistance to load and impact.

   - It diminishes the ductility and toughness of the material, making it more prone to brittle fracture.

   - The density and distribution of fragmented graphite can further influence the severity of these effects.

4. Microstructural Analysis Techniques:

   - Microstructural analysis techniques such as optical microscopy and scanning electron microscopy (SEM) are commonly employed to examine the microstructure of exploded graphite in ductile iron.

   - These techniques allow for detailed observation and characterization of the fragmented graphite morphology, distribution, and its relationship with the surrounding matrix.

5. Heat Treatment and Graphite Restoration:

   - Heat treatment processes, such as annealing or stress relieving, can help mitigate the effects of exploded graphite on the microstructure.

   - Controlled heat treatments promote the redistribution of carbon, allowing for the restoration of the desired nodular graphite structure.

   - The effectiveness of heat treatment in restoring the microstructure depends on the severity of the exploded graphite and the specific heat treatment parameters applied.

Understanding the microstructure of exploded graphite in ductile iron is crucial for assessing its impact on mechanical properties and developing effective prevention and mitigation strategies. Microstructural analysis techniques and appropriate heat treatment processes play a significant role in evaluating and restoring the graphite morphology within the microstructure.
